Miniature Compression Force Sensor 3 Kg - 30 Kg Small Load Cell With 8mm Diameter

Brand Name : kaw

Model Number : QJLW-14

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

name : small size load cell

accurracy : 0.5%

material : steel

capacity : 0.5-25kN

load direction : compression

application : feeling tester for keyboard switch

Contact Now

Miniature Compression Force Sensors 3-30kg the smallest size force load cell with diameter only 8mm

Features:

1. Miniature Pressure Force Sensors are made of 17-4PH stainless steel and offer strong pressure bearing ability.

2. mainly capacities can be selected: 3-30kg

3. The force sensors are small and it is easy to install them.

4. The dimension and capacity of these force sensors can be customized by request.

Applications:

Miniature Compression Force Sensors with High Accuracy are mainly applied in tension and compression testing instruments, automatic equipments and testing fields, such as insertion force test instruments, riveting machine, welding machine, hot & cold lamination machine, feeling tester for keyboard switch, and etc.

Specifications:

Rated Output	mv/V		0.5-1.0 (3~5kg) 1.0-1.5 (10~30kg)
Non-Linearity	%F.S		1~3
Zero output	%F.S		1~3
Hysteresis	%F.S		1~3
Repeatability	%F.S		1~3
TC SPAN	%F.S/10ºC		±0.5
Temp.effect on zero	%F.S/10ºC		±0.5
Input Impedance	Ω		350±10
Output Impedance	Ω		350±3
Insulation Resistance	MΩ		≥2000/100VDC
Compensated temp. range	ºC		-10～+60
Operation temp range	ºC		-20～+80
Safe Overload	%F.S		120
Lateral Overload	%F.S		150
Rated Excitation	V DC		5
Excitation,Maximum	V DC		12
Protection Class	IP64
Construction	Stainless steel
Cable Length	meter	Φ2*3000mm
Wiring	Red: + Excitation Black: - Excitation Green: + Signal White: - Signal

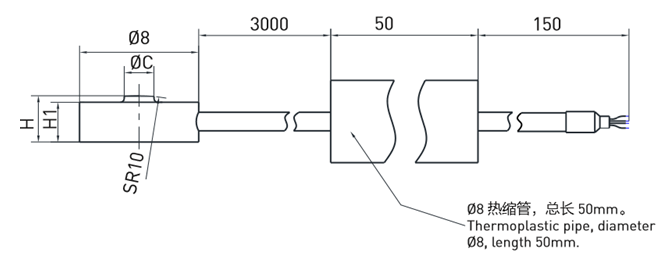

Main Dimensions and Accessories

Miniature Compression Force Sensor 3 Kg - 30 Kg Small Load Cell With 8mm Diameter

Capacity(KN)	C	H	H1	Material	Weight
3,5,10	2	3.5	3	Stainless steel	0.01kg
20,30	2.5	5.5	5	Stainless steel	0.01kg
