QDAD-H platform scale load cell , bench scale load cell ,price computing scale,200kg,...,635,1200kg load cell
Description
Model: QDAD-H
Brand: KAW
Capacity: 200,300,500,635,1200 kg
Usage: platform scale,bench scale,price computing scale,counting scale, racing car
Dimension: 38*63.25*188mm
Features
· parellel bending beam
· capacity:200kg,...,635,1200kg
· accuracy:0.02%R.O.
· Output adjustment for parellel using
· recommended platform size:600*600MM
· aluminum construction with surface anodized
· environment protection class:IP65
Applications
· price computing scales
· counting scales
· weighing scales
· retail scales
· bench scales
· platform scales
· racing car
Description
KAW Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of KAW Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model QDAD-H load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. QDAD-H load cells can be used to measure loads range from 200kg to 1200kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
QDAD-H load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales, platform scales and racing car.

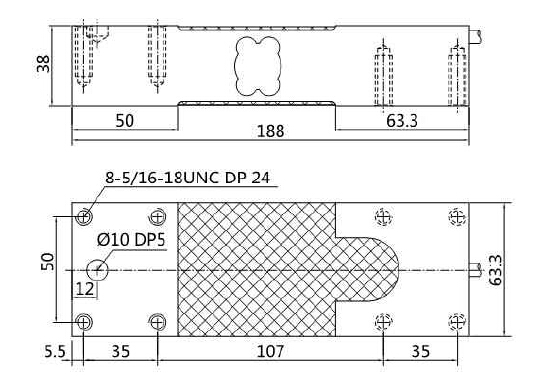

Dimension
Electrical Connection
Technical Data
| Rated Capacity | 200, 300,500, 635, 1200 (kg) |
| Accuracy Class | G |
| Rated Output | 2.0± 5%mV/V |
| Zero Balance | ±5%R.O. |
| Input Resistance | 405±10Ω |
| Output Resistance | 350±3Ω |
| Linearlty Error | ±0.015%R.O. |
| Repeatability Error | ±0.01%R.O. |
| Hysteresis Error | ±0.01%R.O. |
| Creep in 30 Min. | ±0.02%R.O. |
| Temp.Effect on Output | ±0.02%R.O./10℃ |
| Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation,Recommended | 5－12VDC |
| Excitation,Maximum | 18VDC |
| Operating Temp.Range | -20－+60℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥5000MΩ(50VDC) |
| Cable,Length | ø5mm×2m * |
| Protection Class | IP65 |
