Compression weight sensor truck scale button load cell 1 ton 100 ton IP66 water proof standard
Features;
- Stainless steel IP67 shear beam load cell (250kg is bending beam load cells)
- Suitable for floor scales, automobile test facilities, hopper scales and other weighing devices.
- Current calibrated (sc-option)
Available models
| Capacity | Accuracy | Full article description |
| | | |
| 250kg | C3/C4/C5 | B8D-C3/C4/C5-250kg-6B(-W6) |
| | | |
| 500kg | C3/C4/C5 | B8D-C3/C4/C5-500kg-6B(-W6) |
| | | |
| 1t | C3 | B8D-C3-1t-6B(-W6) |
| | | |
| 2t | C3 | B8D-C3-2t-6B(-W6) |
| | | |
| 5t | C3 | B8D-C3-5t-6B(-W6) |

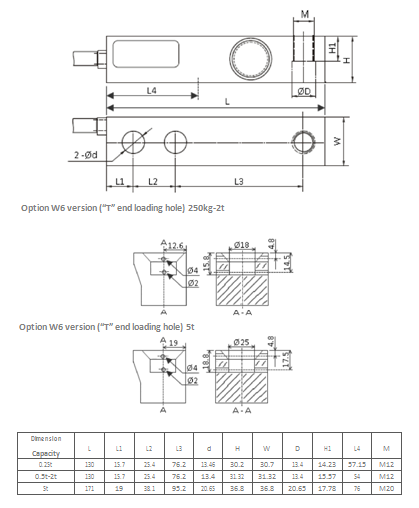

Detailed specifications B8D
| Accuracy class | | | OIML R60 C3 | | | OIML R60 C4 | OIML R60 C5 |
| | | | | | | | | |
| Output sensitivity ( = FS ) | mV/V | | | | | 3.0 ± 0.008 | |
| | | | | | | | | | |
| Maximum capacity ( Emax ) | t | 0.25 | | 0.5, 1, | | 5 | | 0.25, 0.5 |
| | 2 | | |
| | | | | | | | |
| | | | | | | | | |
| | | | | | | | | | |
| Max.number of load cell intervals | nLC | | 3000 | | | | 4000 | 5000 |
| Ratio of min. LC verification interval | Y = Emax / vmin | 10000 | 7500 | | 9000 | | 10000 | 10000 |
| Combined Error | %FS | | ≤± 0.0230 | | | ≤± 0.0175 | ≤± 0.0140 |
| | | | | | | | | | |
| Minimum dead load | Of Emax | | | | | | 0% | |
| Safe overload | of Emax | | | | | | 150 % | |
| Ultimate overload | of Emax | | | | | | 300 % | |
| Zero balance | of FS | | | | | | < ± 1.0 % | |
| | | | | | | | | |
| Excitation, recommended voltage | V | | | | | | 5 ~ 12 | |
| | | | | | | | | |
| Excitation maximum | V | | | | | | 18 | |
| | | | | | | | | |
| Input resistance | Ω | | | | | | 350 ± 3.5 | |
| | | | | | | | | |
| Output resistance | Ω | | | | | | 350 ± 3.5 | |
| | | | | | | | |
| Insulation resistance | MΩ | | | | | ≥5000 ( at 50VDC ) | |
| | | | | | | | | |
| Compensated temperature | °C | | | | | | -10 ~+40 | |
| | | | | | | | | |
| Operating temperature | °C | | | | | | -35 ~ +65 | |
| | | | | | | | | |
| Storage temperature | °C | | | | | | -40 ~ +80 | |
| | | | | | | | |
| Element material | | | | | | Stainless steel | |
| | | | | | | | | | |
| Ingress Protection (acc. to EN 60529) | | | | | | | | IP67 | |
| | | | | | | | | |
| Recommended torque on fixation | Nm | | | M12: 75 | | M20:450 | |
| | | | | |
| ATEX classification (optional) | | II1G Ex ia II1C T4 | II1D Ex iaD 20 T73°C | II3G nL IIC T4 |
| | | | | | | | | | |
Wiring
Wiring:
Shielded, 4 conductor cable
Cable diameter: Ø5mm.
Standard cable length: 6m
Shield not connected to element.
HOT SALES MODEL:
H8C-C3-1t-4B1
H8C-C3-1.5t-4B1
H8C-C3-2.0t-4B1
H8C-C3-2t-4B1
H8C-C3-2.5t-6B1
H8C-C3-3.0t-6B1
H8C-C3-3t-6B1
H8C-C3-5.0t-6B1
H8C-C3-5t-6B1
H8C-C3-10t-6B1
H8C-C3-500kg-4B-C
H8C-C3-1.0t-4B-C
H8C-C3-1t-4B-C
H8C-C3-1.5t-4B-C
H8C-C3-2.0t-4B-C
H8C-C3-2t-4B-C
H8C-C3-2.5t-6B-C
H8C-C3-3.0t-6B-C
H8C-C3-3t-6B-C
H8C-C3-5.0t-6B-C
H8C-C3-5t-6B-C
H8C-C3-10t-6B-C
H8C-N10-1.0K-6YB
H8C-N10-2K-6YB
H8C-N10-2.5K-6YB
H8C-N10-3K-6YB
H8C-N10-4K-6YB
H8C-N10-5KSE-6YB
H8C-N10-5K-6YB
H8C-N10-7.5K-6YB
HM8C-C3-500kg-4B
HM8C-C3-1.0t-4B
HM8C-C3-1t-4B
HM8C-C3-1.5t-4B
Packaging & Shipping
1.All our 50kg alloy steel single point load cell is packed by carton. And then the carton is wrapped by plastic film to ensure it not to be damaged.
2.We adopt standard export package.Also, we can pack our product as customers' requirements.
3.Our quality 50kg alloy steel single point load cell is exported to and installed in around 40 countries and get good reputation from customers against its high quality.
Our Services
1.We provide 7days/24h after-sale services for all our products
2.Our warranty is 12months, man-made damage is excluded.
