Steel Compression Type Load Cell , Double Ended Load Cell Shear Beam For Weighing Scale

Brand Name : kaw

Model Number : QJM

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

name : weighbridge load cell

accurracy : 0.02%

material : steel

capacity : 20,30,50,100,200,300,500,1000,1500

load direction : compression

application : truck scales

Contact Now

double ended shear beam load cell for weighing scale, hopper scales and truck scales

Description

Model: QJM

Brand: KAW

Capacity: 50,60,75,100(Klb)

Usage: double ended shear beam structure, steel construction,, Used for electronic truck scales, crane scales, ground scales and other large scales.

Features

· double shear beam construction

· capacity: 50,6075,100(Klb)

· accuracy:0.03% R.O.

· environment protection class:IP66

Applications

· truck scales

· weighbridge

· ground scale

· industrial weighing

· crane scales

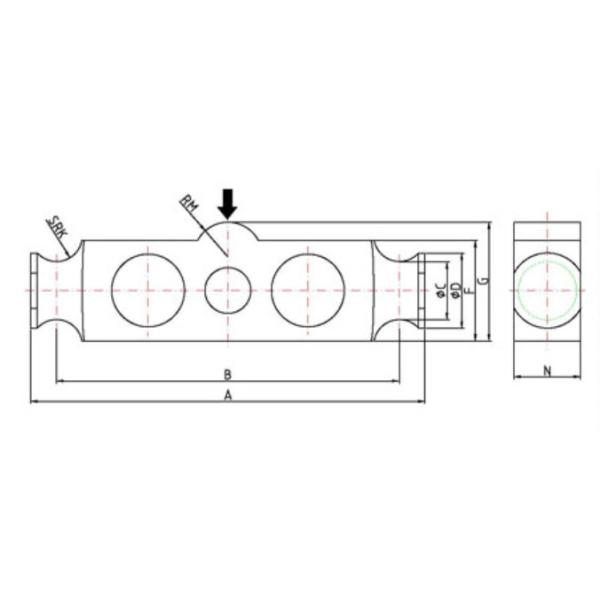

Dimension

Steel Compression Type Load Cell , Double Ended Load Cell Shear Beam For Weighing Scale

Capacity(Klb)	A	B	C	D	E	F	G	K	M	N
50,60,75	292.1	254	43.18	55.88	43.18	74.68	88.14	19.05	25.4	49.28
100	368.3	317.5	61.98	81.82	50.8	98	118.85	25.4	38.1	73.7

Electrical Connection
Steel Compression Type Load Cell , Double Ended Load Cell Shear Beam For Weighing Scale
Technical Data

Rated Output	3.0 ± 10%mV/V
Zero Balance	±0.03%R.O.
Input Resistance	750±25Ω
Output Resistance	700±5Ω
Linearity Error	±0.03%R.O.
Repeatability Error	±0.02%R.O.
Hysteresis Error	±0.02%R.O.
Creep in 30 Min.	±0.05%R.O.
Temp.Effect on Output	±0.03%R.O./10℃
Temp.Effect on Zero	±0.03%R.O./10℃
Compensated Temp.Range	-10－+40℃
Excitation,Recommended	5－12VDC
Excitation,Maximum	18VDC
Operating Temp.Range	-20－+60℃
Safe Overload	150%R.C.
Ultimate Overload	300%R.C.
Insulation Resistance	≥2000MΩ(50VDC)
Cable,Length	Ø5mm×6m
Protection Class	IP66
