Silo hopper scales push pull sensor s-type load cell
Description
Model: QJTS 3
Brand: KAW
Capacity: 100,200, 300,500,750,1000,2000,3000,5000,10000,20000 (kg)
Usage: S-type steel load cell, tension and compression loading, used for batching scales, hopper scales, force measuring system and industrial weighing and control systems.
Features
· S-type weighing load cell
· capacity: 100,200, 300,500,750,1000,2000,3000,5000,10000,20000 (kg)
· accuracy:0.03% R.O.
· steel
· environment protection class:IP66
Applications
· force measuring system
· hopper scales
· testing instruments
· pull and push dynamometer
· Tension and compression application
· tensile testing
· test benches
· machine testing
· force calibration system
· industrial weighing
· control systems

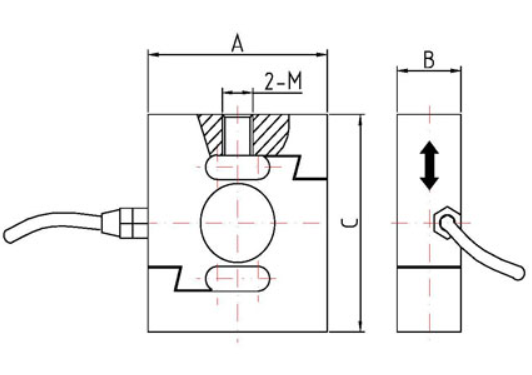

Dimension
| Capacity(kg) | A | B | C | M |
| 100~750 | 70 | 19 | 80 | M10*1.5 |
| 1000~1500 | 70 | 25 | 80 | M12*1.5 |
| 2000~5000 | 95 | 25 | 108 | M18*1.5 |
| 10000 | 130 | 51 | 178 | M30*2 |
| 20000 | 160 | 60 | 190 | M39*2 |
Electrical Connection
Technical Data
| Rated Output | 2.0 (3.0)± 10%mV/V |
| Zero Balance | ±1%R.O. |
| Input Resistance | 385±15Ω |
| Output Resistance | 350±3Ω |
| Linearlty Error | ±0.03%R.O. |
| Repeatability Error | ±0.02%R.O. |
| Hysteresis Error | ±0.02%R.O. |
| Creep in 30 Min. | ±0.03%R.O. |
| Temp.Effect on Output | ±0.025%R.O./10℃ |
| Temp.Effect on Zero | ±0.025%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation,Recommended | 5－12VDC |
| Excitation,Maximum | 18VDC |
| Operating Temp.Range | -20－+80℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | Ø5mm× 3m * |
| Protection Class | IP65 |
Packaging & Shipping
1.All our 50kg alloy steel single point load cell is packed by carton. And then the carton is wrapped by plastic film to ensure it not to be damaged.
2.We adopt standard export package.Also, we can pack our product as customers' requirements.
3.Our quality 50kg alloy steel single point load cell is exported to and installed in around 40 countries and get good reputation from customers against its high quality.
Our Services
1.We provide 7days/24h after-sale services for all our products
2.Our warranty is 12months, man-made damage is excluded.
