50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Product Categories
KAW ELECTRONICS Co.Ltd
Contact Now

50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Brand Name : KAW

Model Number : BM14G4-C3/C4-20t-18B-SC-W1

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

name : column type load cell

accurracy : 0.025~0.03%

material : steel

capacity : 5t-50t

load direction : compression

application : hopper scales

Contact Now

50t hopper scales load cell BM14G4-C3/C4-50t-18B-SC-W1 from ZEMIC high accurracy weighing sensor

Features;

  • Stainless steel IP68 compression load cell
  • Hermetically sealed
  • Suitable for hopper scales and vehicle testing facilities
  • Built in surge arrestors
  • Current calibrated (sc-option)

Available models

50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Capacity Accuracy Full article description
10t C3/C4 BM14G4-C3/C4-10t-18B-SC-W1
20t C3/C4 BM14G4-C3/C4-20t-18B-SC-W1
30t C3/C4 BM14G4-C3/C4-30t-18B-SC-W1
40t C3/C4 BM14G4-C3/C4-40t-18B-SC-W1
50t C3/C4 BM14G4-C3/C4-50t-18B-SC-W1

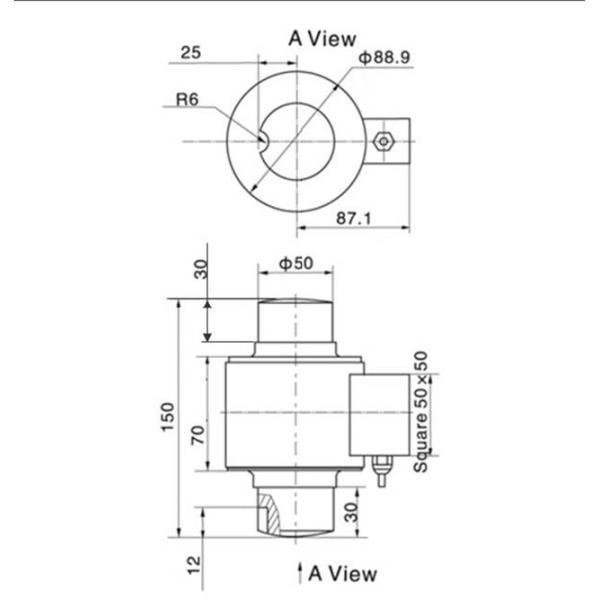

Detailed specifications BM14G4

50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Accuracy class OIML R60 C3 OIML R60 C4
Output sensitivity ( = FS ) mV/V 2.0 ± 0.02
Maximum capacity ( Emax ) t 10, 20, 30, 40, 50
Max.number of load cell intervals nLC 3000 4000
Ratio of min. LC verification interval Y = Emax / vmin 8800
Combined Error %FS ≤± 0.0230 ≤± 0.0175
Minimum dead load Of Emax 0%
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance of FS < ± 1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Input resistance Ω 700 ± 7
Output resistance Ω 700 ± 7
Insulation resistance MΩ ≥5000 ( at 50VDC )
Compensated temperature °C -10 ~+40
Operating temperature °C -35 ~ +65
Storage temperature °C -40 ~ +70
Element material Stainless steel
Ingress Protection (acc. to EN 60529) IP68
Recommended torque on fixation Nm -
ATEX classification (optional) II1G Ex ia II1C T4 II1D Ex iaD 20 T73°C II3G nL IIC T4

Wiring

50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Wiring:

Shielded, 4 conductor cable

Cable Diameter: Ø5mm

Standard cable length: 15m

Shield not connected to element

50 Ton Hopper Scale Load Cell , ZEMIC Column Type High Accuracy Load Cell

Hot sales model:

BM14A 10t～100t;10Klb～500Klb
BM14C 10t～50t
HM14C 10t～50t
BM14D 10t～100t
BM14G 10t～50t
BM14K 10t～100t

HM14C-C3-10t-13B6
HM14C-C3-20t-13B6
HM14C-C3-25t-13B6
HM14C-C3-30t-13B6
HM14C-C3-40t-13B6
HM14C-C3-50t-13B6

BM14C-C3-0.5t-13B6
BM14C-C3-1t-13B6
BM14C-C3-2t-13B6
BM14C-C3-3t-13B6
BM14C-C3-5t-13B6
BM14C-C3-10t-13B6
BM14C-C3-20t-13B6
BM14C-C3-25t-13B6
BM14C-C3-30t-13B6
BM14C-C3-40t-13B6
BM14C-C3-50t-13B6

BM14G-C3-10T-15B-SC
BM14G-C3-20T-15B-SC
BM14G-C3-30T-15B-SC
BM14G-C3-40T-15B-SC
BM14G-C3-50T-15B-SC
