600 kg Parallel Beam Load Cell , High Accuracy Platform Scale Load Cell

Brand Name : KAW

Model Number : H6G-C3-200kg-3B6

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

name : Single point load cell

accurracy : 0.025~0.03%

material : steel

capacity : 100kg，200kg，300kg， 500kg，600kg

load direction : compression

application : Platform scales

Contact Now

600kg parallel shear beam load cell C3 accurracy class H6G-C3-600kg-3B6 from ZEMIC

Features:

Nickel plated alloy steel IP66 single point load cell Non OIML approved

Suitable for single or double load cell structured platform scales

Maximum platform size: 600 x 600 mm

Available models

600 kg Parallel Beam Load Cell , High Accuracy Platform Scale Load Cell

Capacity	Accuracy	Full article description

100kg	C3	H6G-C3-100kg-3B6

150kg	C3	H6G-C3-150kg-3B6

200kg	C3	H6G-C3-200kg-3B6

250kg	C3	H6G-C3-250kg-3B6

300kg	C3	H6G-C3-300kg-3B6

500kg	C3	H6G-C3-500kg-3B6

600kg	C3	H6G-C3-600kg-3B6

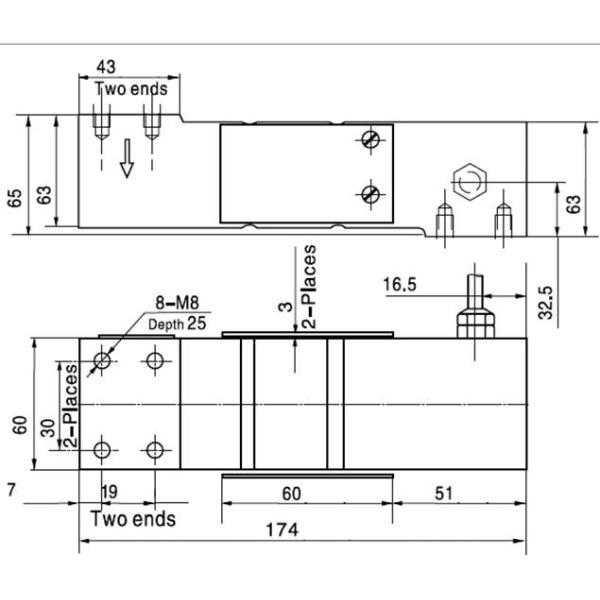

Detailed specifications H6G

600 kg Parallel Beam Load Cell , High Accuracy Platform Scale Load Cell

Accuracy class			C3

Output sensitivity ( = FS )	mV/V	2.0 ± 0.2

Maximum capacity ( E_max )	kg	100, 150, 200, 250, 300, 500, 600
Max.number of load cell intervals	ⁿLC	3000
Ratio of min. LC verification interval	^{Y = E}max ^{/ v}min	7500
Combined Error	%FS		≤± 0.0230

Minimum dead load	Of E_max	0%
Safe overload	^{of E}max	150 %
Ultimate overload	^{of E}max	300 %
Zero balance	of FS	< ± 1.0 %

Excitation, recommended voltage	V	5 ~ 12

Excitation maximum	V	18

Input resistance	Ω	384 ± 4

Output resistance	Ω	351 ± 2

Insulation resistance	MΩ		≥5000 ( at 50VDC )

Compensated temperature	°C	-10 ~+40

Operating temperature	°C	-35 ~ +65

Storage temperature	°C	-40 ~ +70

Element material		Nickel plated alloy steel

Ingress Protection (acc. to EN 60529)			IP66

Recommended torque on fixation	Nm		M8: 25

ATEX classification (optional)		II1G Ex ia II1C T4	II1D Ex iaD 20 T73°C	II3G nL IIC T4

Wiring

600 kg Parallel Beam Load Cell , High Accuracy Platform Scale Load Cell

Wiring:

Shielded, 6 conductor cable.

Cable diameter: Ø6mm.

Standard cable length: 3m.
