Button Type Miniature Compression Load Cell , Stainless Steel Load Cell Force Measurement

Brand Name : kaw

Model Number : QJLW-19

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

nameg : compression force sensor

accurracy : 0.5%

material : steel

capacity : 0.5t-10t

load direction : compression

application : button type load cell for force testing

Contact Now

miniature button type compression load cell 25-100kg ,stainless steel load cee for force measuring

Features:

1. Miniature load cell with diaphragm type structure, made of stainless steel or aluminum alloy.

2. Mainly used for force measurement in different small spaces.

3. Widely used for industrial measurement and control, R&D and other applications.

4. capacity: 25-100kg

Applications:

Miniature Compression Force Sensors with High Accuracy are mainly applied in tension and compression testing instruments, automatic equipments and testing fields, such as insertion force test instruments, riveting machine, welding machine, hot & cold lamination machine, feeling tester for keyboard switch, and etc.

Specifications:

Rated Output	mv/V		2.0±10%
Non-Linearity	%F.S		0.05
Zero output	%F.S		2
Hysteresis	%F.S		0.05
Repeatability	%F.S		0.05
TC SPAN	%F.S/10ºC		±0.03
Temp.effect on zero	%F.S/10ºC		±0.03
Input Impedance	Ω		385±30
Output Impedance	Ω		350±5
Insulation Resistance	MΩ		≥2000
Compensated temp. range	ºC		-10～+40
Operation temp range	ºC		-20～+60
Safe Overload	%F.S		150
Lateral Overload	%F.S		300
Rated Excitation	V DC		10
Excitation,Maximum	V DC		15
Protection Class	IP66
Construction	Stainless steel
Cable Length	meter	Φ2*3000mm
Wiring	Red: + Excitation Black: - Excitation Green: + Signal White: - Signal

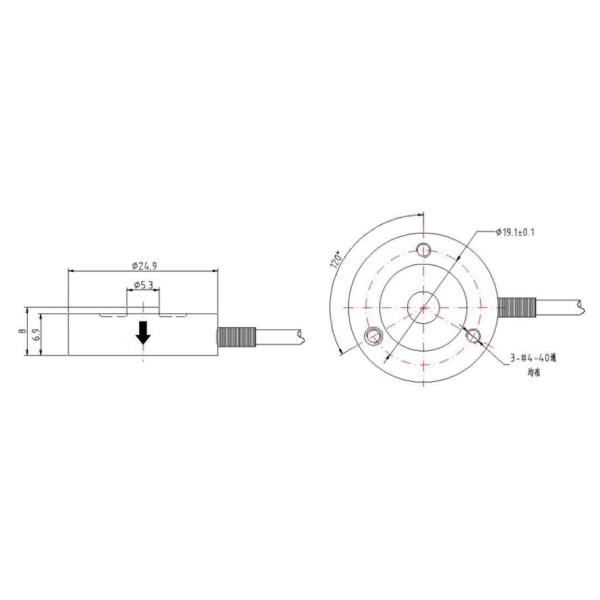

Main Dimensions and Accessories

Button Type Miniature Compression Load Cell , Stainless Steel Load Cell Force Measurement
