compression and tension Chinese load cell mini size capacity 0.5KN, 1KN,10KN,50KN,100kN
Features:
1. Low deflection tension and compression load cell with metal foil strain gauge technology, made of stainless steel.
2. Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
3. Cable force measurement, production lines, Experimental set-ups, press-in, stamping forces.
4. Capacity: 0.5-100kN
Applications:
Miniature Compression and Tension Force Sensors with High Accuracy are mainly applied in tension and compression testing instruments, automatic equipments and testing fields, such as insertion force test instruments, riveting machine, welding machine, hot & cold lamination machine, feeling tester for keyboard switch, and etc.
Specifications:
| Rated Output | mv/V | 1.0±10% |
| Non-Linearity | %F.S | 0.5 |
| Zero output | %F.S | 2 |
| Hysteresis | %F.S | 0.1 |
| Repeatability | %F.S | 0.1 |
| TC SPAN | %F.S/10ºC | ±0.05 |
| Temp.effect on zero | %F.S/10ºC | ±0.05 |
| Input Impedance | Ω | 780±10 |
| Output Impedance | Ω | 700±5 |
| Insulation Resistance | MΩ | ≥2000 |
| Compensated temp. range | ºC | -10～+60 |
| Operation temp range | ºC | -30～+70 |
| Safe Overload | %F.S | 120 |
| Lateral Overload | %F.S | 150 |
| Rated Excitation | V DC | 10 |
| Excitation,Maximum | V DC | 15 |
| Protection Class | IP66 |
| Construction | Stainless steel |
| Cable Length | meter | Φ2*3000mm |
| Wiring | Red: + Excitation Black: - Excitation Green: + Signal White: - Signal |
| | | | |

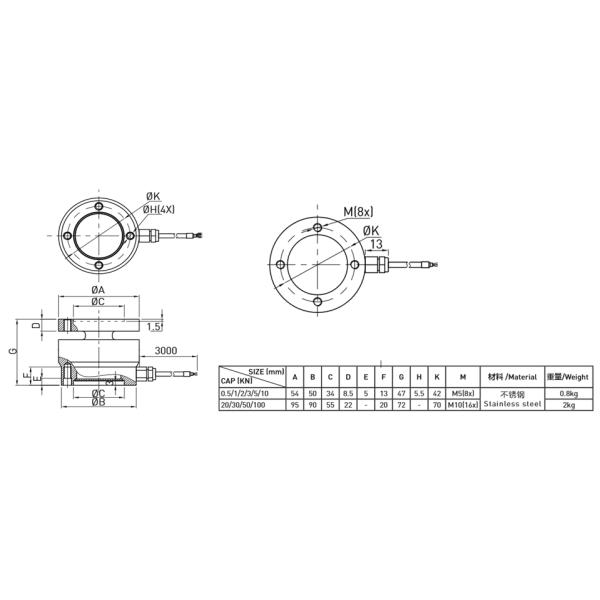

Main Dimensions and Accessories
