High Accuracy S Type Load Cell / Tension Load Cell For Force Measuring Instruments

Brand Name : kaw

Model Number : QJTI

Certification : ROSH

Place of Origin : CHINA

MOQ : 1pcs

Price : USD20~30/PCS

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000PCS/Month

Packaging Details : paper cartons, 16pcs/carton

Name : s-type steel construction load cell

application : Tension and compression

accurracy : 0.03%

material : steel

capacity : 100,200,300,500,1000(kg)

load direction : force calibration systems

Contact Now

tension load cell with alloy tool steel construction accurracy 0.03% for force measuring struments

Description

Model: QJTI

Brand: KAW

Capacity: 100,200,300,500,1000(kg)

Usage: tension load cell with alloy tool steel construction, used for batching scales, hopper scales, force measuring system and industrial weighing and control systems.

Features

· S-type steel construction load cell

· capacity: 100,200,300,500,1000(kg)

· accuracy:0.03% R.O.

· alloy steel

· environment protection class:IP65

Applications

· force measuring system

· hopper scales

· testing instruments

· pull and push dynamometer

· Tension and compression application

· tensile testing

· test benches

· machine testing

· force calibration system

· industrial weighing

· control systems

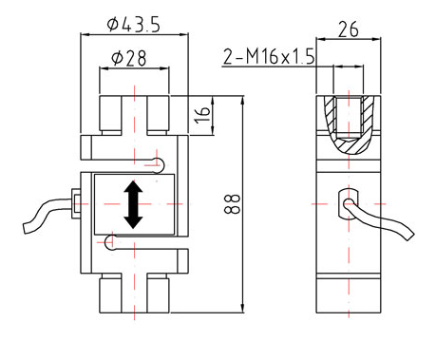

Dimension
High Accuracy S Type Load Cell / Tension Load Cell For Force Measuring Instruments

Electrical Connection

Technical Data

Rated Output	2.0 ± 10%mV/V
Zero Balance	±5%R.O.
Input Resistance	385±15Ω
Output Resistance	350±3Ω
Linearlty Error	±0.03%R.O.
Repeatability Error	±0.03%R.O.
Hysteresis Error	±0.02%R.O.
Creep in 30 Min.	±0.03%R.O.
Temp.Effect on Output	±0.03%R.O./10℃
Temp.Effect on Zero	±0.03%R.O./10℃
Compensated Temp.Range	-10－+40℃
Excitation,Recommended	5－12VDC
Excitation,Maximum	18VDC
Operating Temp.Range	-20－+80℃
Safe Overload	150%R.C.
Ultimate Overload	200%R.C.
Insulation Resistance	≥2000MΩ(50VDC)
Cable,Length	Ø4mm× 3m *
Protection Class	IP65
